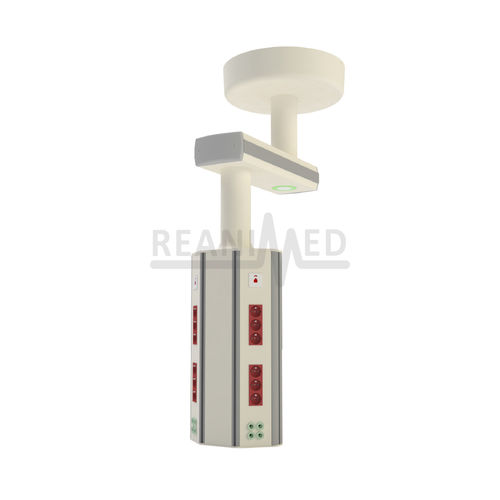

Medical pendant PND-HXM-M03-1K

ceiling-mountedanesthesiaintensive care

Thanks to its versatile mobility and ergonomic design, it provides ease of use and access to medical gas, electricity, data and other equipment in areas where patient intervention is required such as operating rooms, intensive care rooms and emergency services. TECHNICIAL SPECIFICATIONS Arm Lengths: 600 / 800/ 1000 mm Total Carrying Capacity: 80 kg (±5%) Medical Gas Sockets and Equipment: In DIN / BS / NF Standards, the number and type are determined according to the needs in the usage areas. Electrical Sockets and Equipment: In DIN / BS / NF Standards, the number and type are determined according to the needs in the usage areas. Carrier Shelf: 350x350 mm - Carrying Capacity 60 kg (±5%) Special production can be made according to demand. Accessory Rail: 30x10x350 mm (±10%) 2 pieces. - Carrying Capacity 10 kg (±5%) Brake Control Panel: Membrane Button, Brake Control Panel Brake Type : Pneumatic / Mechanical Rotation Limit: Rotational Rotation Limit is 330° C in Both Directions. Material : Aluminum Extrusion Profile
