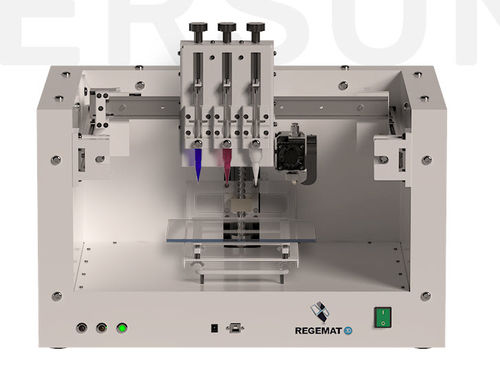

3D bioprinter BIO V1

laboratoryFDMmodular

First choose the surface on which you want to print: The configuration of the printing head and the wide range of movements in X, Y and Z allow a precise adjustment that allows the system to print on different surfaces. Next, select the tools needed for the materials you will work withs: Our head system allows you to include different syringe modules and tools for any application. The modular extrusion head can be configured with different interchangeable extrusion tools, depending on the nature and intrinsic characteristics of the materials. This allows us to have a head adapted to the needs of the materials to be extrudedr. The printing head can be configured with four different tools with adjustment movement in the X and Y. 3 syringes printing head Fixed Standard complements are included in yje basic system Thermoplastic extruder Printing surfaces Glass platform Cooled bed Heated bed Multiwell plate Petri dish Below please select the needed tools to print your material. We design adaptable components for the extrusión tools, in accordance with the nature and intrinsic characteristics of the materials can be adapting the module depending on the needs of the material to be extruded. TECHNICAL SPECIFICATIONS Resolution Resolution real in the X e Y axis (spindel movement) = 150 μ m (0.15mm) | Resolution in Z = 400 nm (0,4 microns) Theoretical resolution in the X and Y axis = 1.875 micras - 1875 nm Thermoplastic extruder Nozzle output diameter 0,4 mm. Syringes: Several output diameters 0,15 mm, 0,58 mm, 1,20 mm Bioprinting applications Tissue regeneration: Skin - Bone Cartilage - Cardiac tissue Cornea - Tumoral models Drug testing Biomaterials development
