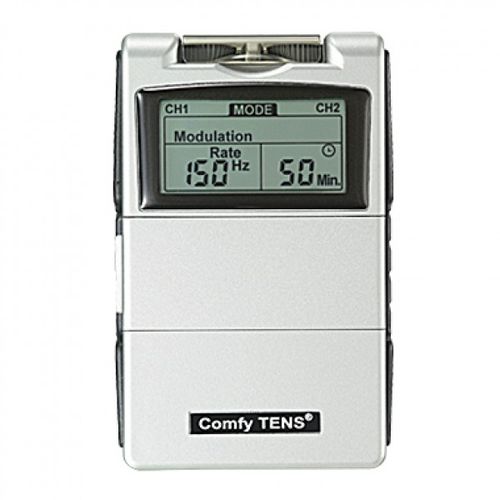

Electric stimulator EV804

hand-heldTENS2-channel

The EV-804 TENS features 5 stimulation modes and adjustable pulse width, pulse rate and treatment timer. Its large liquid display showing the mode name and all settings is ideal for users to check the setting in any time. DETAILS The EV-804 TENS features 5 stimulation modes and adjustable pulse width, pulse rate and treatment timer. Its large liquid display showing the mode name and all settings is ideal for users to check the setting in any time. - Pulse Amplitude: Adjustable, 0-100 mA peak into 500 ohm load - Wave Form: Asymmetrical Bi-Phasic Square Pulse - Pulse Rate: Adjustable, from 2 to 150 Hz, 1Hz/Step - Pulse Width: Adjustable, from 50 to 300 microseconds, 10µs/step - Modes: B(Burst), N(Normal), M(Modulation), SD1(Strength Duration), SD2 - Timer: Adjustable, from 5 to 60 minutes or Continuous. Features - Flip top cover - 5 modes of option - Protective strips on both sides of unit - Large LCD showing all settings - Easy to use press buttons control - Simple directions for use inside the cover - Patient compliance meter up to 999 hours - Storage of the last used settings
