Compact. Ergonomic. User friendly.

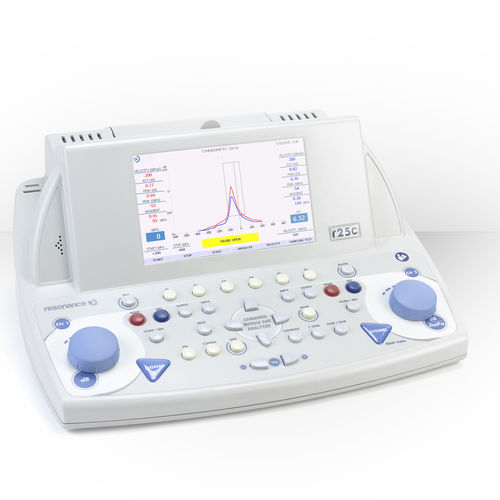

R25C Resonance Diagnostic Combined provides a flexible diagnostic device for Tympanometry, acoustic reflex measurement and Audiometry. Compact dimensions, excellent ergonomics and a luminous 7” TFT display: R25C has been engineered to respond to the needs of ENT and Audiology Specialists, operating both in clinic and medical practice.
General Specifications
DIMENSIONS AND WEIGHT
• L x W x H: 370 x 290 x 180 mm
• Net weight: 3.5 kg
TEST TYPES
• Tympanometry: Automatic Tympanometry, Acoustic
Reflex, Reflex Decay, Quick test: check and screening,
Multifrequency Timpanometry*
• Audiometry: Pure Tone test, Autothreshold, ABLB, Speech
Test, Stenger, GAP, DLF
USER INTERFACE
• Multilingual
PRINTER
• Built-in fast thermal printer with paper width: 112 mm
supplied as standard part
REPORTS
• Printed on thermal printer
• .pdf report created directly from the device and stored
on USB Pen drive with possibility to add patient data and
tests comments via the USB Keyboard (optional)
• Data transfer to PC using Resonance Management Data
Suite
COMMUNICATION PORT
• Nr.1 USB host type A • Nr.1 USB slave type B
Tympanometry Specifications
PROBE TONE
• 226 Hz for Admittance (Y) curve tympanometry
• 1000 Hz for Admittance (Y) curve tympanometry with
added Susceptance (B) and Conductance (G) curves*
INTENSITY
• 226 Hz: 85 dB SPL ± 2 dB
• 678, 800 and 1000 Hz: 75 dB SPL ± 2 dB*
• Frequency Accuracy: ± 0.5%
• Harmonic distortion: Less than 1%
