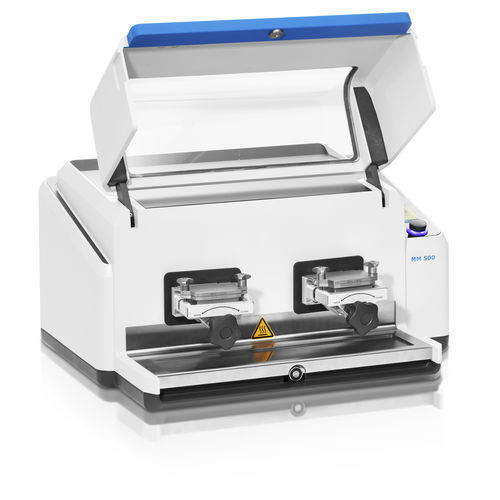

Ball bearing mill MM 500 nano

laboratorypharmaceutical industryfor sample preparation

The mixer mill MM 500 nano is a compact, versatile bench-top unit which has been developed specially for dry, wet and cryogenic grinding of up to 2 x 45 ml sample material within seconds. With a maximum frequency of 35 Hz, it generates enough energy to produce particles in the nanometer range. The robust high-performance drive makes the mill suitable for long-term grinding processes up to 99 hours and thus very interesting for research and mechanochemistry. Hence, the MM 500 nano is a unique mixer mill in the market to provide a real alternative to grinding in a planetary ball mill – with more comfortable handling and less warming effects. HIGH SPEED BALL MILLING WITH EASY OPERATION FOR BEST RESULTS Max. speed 35 Hz Horizontal oscillation causes strong impact effects for effective sample processing Up to 10 mm feed size and 0.1 µm final fineness 2 grinding stations for jars of min. 2 ml and max. 125 ml, adapter for 18 x 2 ml single use vials Steel jars can be precooled manually in liquid nitrogen GrindControl to measure temperature and pressure inside the jar. Aeriation lids to control the atmosphere inside the jar Bench top model, touch screen, easy jar clamping, jars can stay clamped for subsampling, storable SOPs and cycle programs, 4 different jar materials for dry and wet grinding
