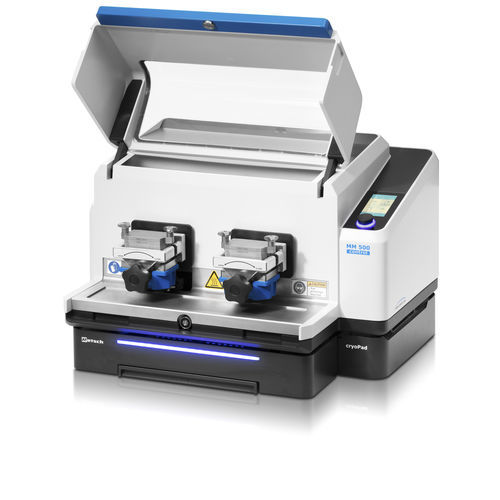

Ball bearing mill MM 500 control

laboratorypharmaceutical industryfor sample preparation

The MM 500 control is a high energy laboratory ball mill that can be used for dry, wet and cryogenic grinding with a frequency of up to 30 Hz. It is the first mixer mill in the market that allows to monitor and control the temperature of a grinding process. The temperature area covers a range from -100 to 100 °C. For maximum flexibility, the mill can be operated with various thermal fluids, enabling the use of different tempering devices for cooling or heating. If liquid nitrogen is chosen for cooling, the mill needs to be equipped with the optionally available extension device cryoPad. The innovative cryoPad technology allows to select and control a specific cooling temperature in the range from - 100 to 0 °C for the grinding process. THE ONLY MIXER MILL WITH TEMPERATURE CONTROL Max. speed 30 Hz Horizontal oscillation causes strong impact effects for effective sample processing Up to 10 mm feed size and 0.1 µm final fineness 2 grinding stations for jars of min. 2 ml and max. 125 ml, adapter for 18 x 2 ml single use vials Various possibilities for heating or cooling with thermal fluid or liquid nitrogen for cryogenic grinding, temperature regulation between -100 °C and 100 °C, monitoring of temperature GrindControl to measure temperature and pressure inside the jar. Aeriation lids to control the atmosphere inside the jar Bench top model, touch screen, easy jar clamping, jars can stay clamped for subsampling, storable SOPs and cycle programs, 4 different jar materials for dry and wet grinding Dry, wet and cryogenic grinding with up to 30 Hz for high energy grinding
