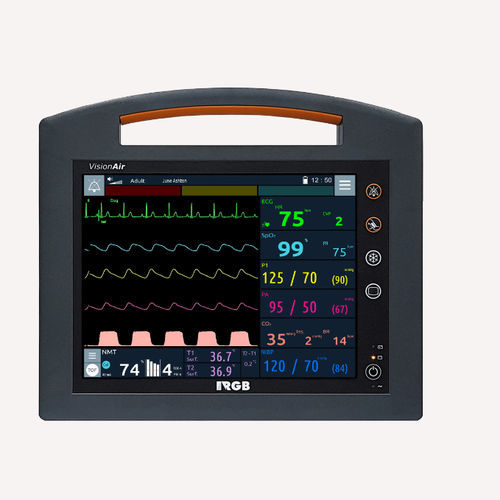

Compact multi-parameter monitor VisionAir

portableECGRESP

AC Power supply: 100-240 V~ Frequency: 47 - 63 Hz AC Input power: 1.0A(100V~) / 0.6A(240V~) Battery: Up to 4 hours autonomy. Built-in charger. Environmental conditions: Storage temperature: -20ºC to 40ºC Operating temperature: 0ºC to 40ºC Altitude: -300 m to 2.000 m Alarms: Optical and acoustic for all parameters. Three priority levels; clinical, technical and procedural. Trends: 72 hours for all parameters, graphical and tabular display. Communication module for data output. Connectors: serial DB9 (RS232), RJ45, USB ECG Leads: I, II, III, aVL, aVF, aVR, Vx Waveforms on screen: 1, 2 or 7 Resolution: 1 bpm Accuracy: ± 2% or ± 2bpm Freeze and memory: 12 seconds of ECG strip for on screen measurement CMRR: > 115 dB in monitor mode > 90 dB in diagnostic mode Signal features: Diagnostic mode: 0,05 to 100 Hz Monitor mode: 0,5 to 40 Hz O.R. mode: 0,5 to 20 Hz Programmable gain: 1 to 8 mV Pacemaker detection and rejection: Pulse duration: 0,1 to 2 ms Pulse amplitude: ± 2 to ±700 mV Patient safety: CF type NIBP Time: typical 25 to 45 seconds maximum 120s (adult/child) 90s (neonate) Modes: Manual Automatic: 1 to 120 min. (1 min. interval) Patient safety: BF type
