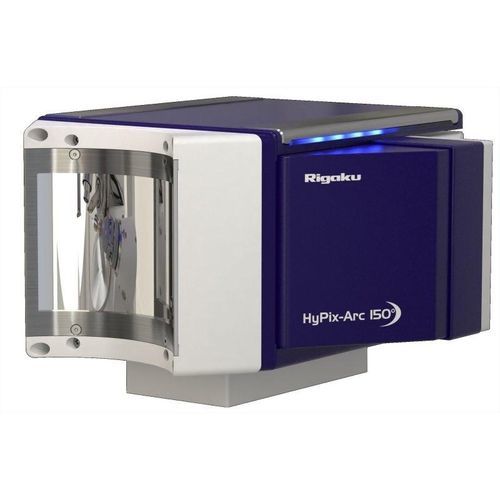

X-ray detector HyPix-Arc 150°
for the pharmaceutical industry

X-ray detector - HyPix-Arc 150° - Rigaku Corporation - for the pharmaceutical industry
X-ray detector - HyPix-Arc 150° - Rigaku Corporation - for the pharmaceutical industry
X-ray detector - HyPix-Arc 150° - Rigaku Corporation - for the pharmaceutical industry - image - 2
X-ray detector - HyPix-Arc 150° - Rigaku Corporation - for the pharmaceutical industry - image - 3
Add to favorites
Compare this product


Characteristics

Tested parameter
X-ray
Applications
for the pharmaceutical industry

Description

The HyPix-Arc 150° is a curved Hybrid Photon Counting (HPC) X-ray detector for single crystal diffraction applications. HyPix-Arc 150° has the highest 2θ range at a single position available for the home lab. Collect more data in a single exposure with less reflection profile distortion: The HyPix-Arc 150° offers 150 degrees angular coverage from edge to edge. This is more than enough to collect complete single crystal diffraction data, according to IUCr guidelines, for even Cu Kα X-ray wavelength from a single theta position. Overview High and low angle data are measured at the same time, under the same conditions for better scaling, faster data and reduced dose time. A curved detector minimizes peak distortion by ensuring that, even at short crystal-to-detector distances, diffracted beams are closer to perpendicular than is possible with a flat geometry. Like all HPC detectors, the HyPix-Arc 150° offers direct X-ray photon counting for every photon, single pixel top-hat point spread function with no readout noise and no dark noise. The 100 micron pixel size allows better resolution of reflections for long unit cells as well as improving reflection profile analysis. The HyPix-Arc 150° has a high frame rate of 100 Hz, as well as a Zero Dead Time mode providing the ultimate in error-free shutterless data collection. The advantage of direct detection found in the HyPix-Arc 150° is that no phosphor is required and the size of the pixel determines the point spread function rather than the blooming that occurs on detectors with a phosphor.
