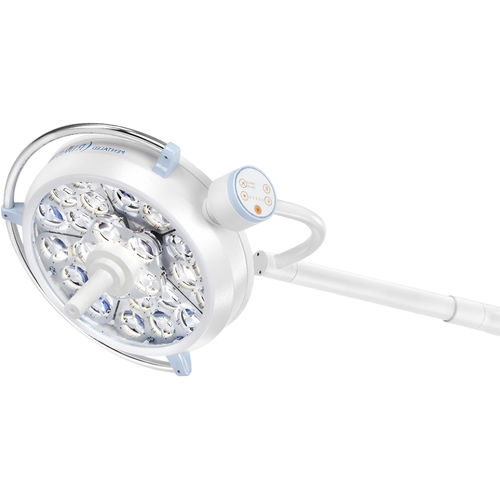

Ceiling-mounted surgical light Pentaled 30N

mobilewall-mountedLED

The operating lamps, which are part of the Pentaled N Series, marked a turning point in medical lighting, since they were the first LED surgical lights presented to the public. The shamanic Pentaled 30N lamp is ideal for maxillofacial surgery and cosmetic surgery. It is particularly suitable in operating rooms where the lamp must be small to avoid interfering with other equipment suspended on the ceiling. Manual focusing within the sterile area ensures precise and immediate control of the light field. The Focus function is activated by the surgeon who rotates the sterile central handle. The multiplicity of light sources and the reflected light system make it possible to achieve the shamanic effect, for a three-dimensional illumination without shadows. Its peculiarities are: – Endoled function with color selection (support light for endoscopy operations) Light head diameter40 cm Diameter adjustment Manual d10 light field diameter where illuminance reached 10% of Ec 205 mm Light field diameter adjustable from-to 140 - 280 mm Depth of illumination IEC 60601-2-41 (L1+L2) at 60% 650 mm Depth of illumination IEC 60601-2-41 (L1+L2) at 20% 1150 mm Total radiated energy Ee where the illuminance reaches max level 580 W/m2 Ratio between radiated energy Ee and illuminance Ec 3,67 Accessories & Main Features Battery group Monitor Arm Remote Control Wall Control Panel Indirect Light E - Deep
