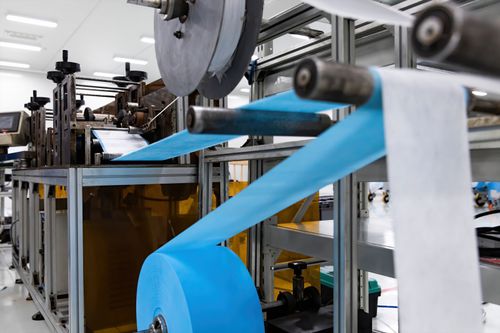

Surgical mask production line MA-1200-TF

automatichigh-speed

Fully automatic line for the production of disposal facial masks (surgical masks) with ear elastic loops Feeding system Creel support for feeding bobbins for easy bobbin exchange. Two feeding bobbin for first and third layer (material PP Nonwoven fabric) One feeding bobbin for second layer (melt-blown Nonwoven fabric). Filter layer Creel support for plastic nose wire bobbin. Cutting system Length of each cut piece (non-woven layer): 175 mm. Plastic nose wire-bridge: 100 mm. Elasticated cord: 300 mm. (150 mm.+150 mm.). produced by our machine TUBOTEX Continuous rotating cutting system, permitting a high production of masks. Folding system Longitudinal lateral melting by ultrasonic system. Insertion and cutting of plastic nose wire (100 mm length) in one lateral. Once three layers joined follows the rotating transversal cutting unit for the cut of 175 mm length piece. Direct transfer to las elastic melting stations (Option one or two). Product delivery system Two conveyors for the horizontal take off for the posterior packing. Automatic counters. Final packaging option by Flow Pack technology
