Centrifugal pump E

water

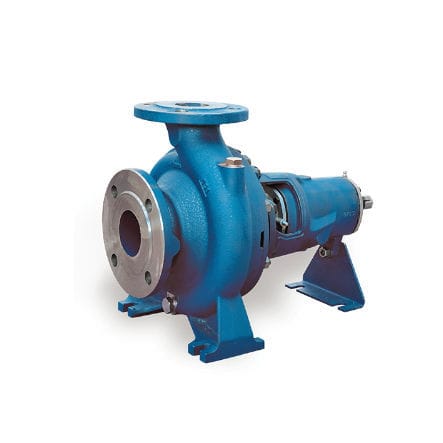

The E pumps are single-stage horizontal centrifugal pumps with axial inlet and manufactured to grant a “back pull-out” disassembly. They are used for clear water pumping in different processes: water supply, industrial applications such as cooling or water circulation or fire-fighting plants. Capacity up to 500 m/h Head up to 95 m The support is equipped with heavy duty oil lubricated bearings. Standardized mechanical seal in accordance with DIN 24960. Inlet nozzle with PN10 flanges UNI 2236 /UNI 2229.
