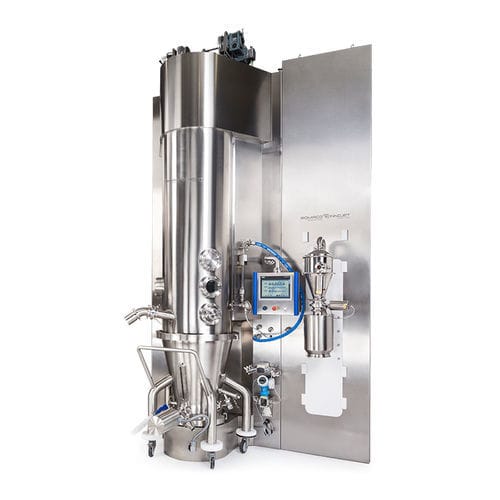

Granulator for the pharmaceutical industry IFT

dryerwet

Traditional drying, granulation and coating: the best solution for drying a wide range of products, especially in the pharmaceutical industry. Performance: 8 L to 1,232 L Designed to perform 3 different processes: Drying of wet granulate (dryer) Granulation by top spraying (granulator) Coating by bottom or tangential spraying (coater) From 30 L to 1,540 L, other dimensions on request In-wall design concept Built in AISI 316L, mirror polished Ra < 0.5 PCL + HMI in manual and automatic mode, with recipe editing 12 bar pressure shock resistance In the ITF machine, the drying process is carried out to reduce the humidity in the granule. Hot, dry air is introduced through a vacuum generated inside the unit. The wet solids rise from the bottom and are suspended in a current of air, remaining in a fluidised state. The heat transfer and the low air humidity in direct contact with the wet granulate allow the evaporation of the water or solvents, reducing their moisture. The process of granulation by top spraying in the ITF machine allows the granulation process to be carried out in a fluid bed. The movement of the powder in a fluidised state is combined with the spraying of a binder solution. This combination makes it possible to increase the particle size generating a granulate. The coating process in the ITF is carried out by combining the spraying of the coating suspension on the microgranules and a fluid bed movement. Spraying is done from the bottom through tubular (Wurster system) IFT Pharmaceutical fluidised bed dryer is ATEX certified.
