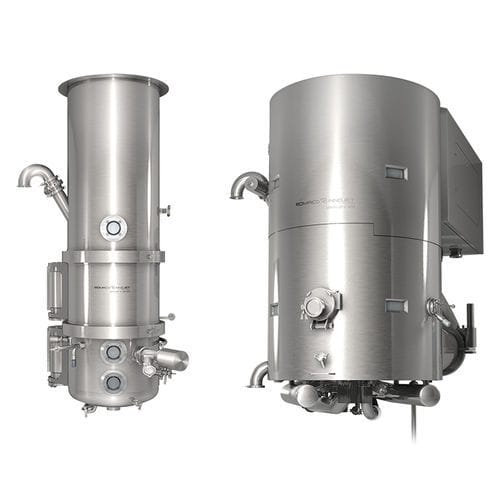

Granulator for the pharmaceutical industry V series

dryerwith coating system

Drying, Granulation, Coating and Hotmelt Coating with state-of-the-art technology for fluid bed processing. 3 batches per shift with a filling range from 12 L to 1500 L processable volume Most sustainable and future-proof processing solution Multipurpose – all in one: Fluid bed granulation, drying and particle coating solution with Dr. hc. Herbert Hüttlin’s patented innovations Closed, Clean, Fast – dust free pneumatic product flow with integrated conical mills for converting powder to granulated product Highest in-process cleaning efficiency – filtration system SEPAJET® Granulation solutions for 100% natural ingredients Scale-up software based on thermodynamics and InnoTech database 100% geometrical scale-up Droplet engineering solutions Reduced water consumption during cleaning Minimised manual operation and set up time Controlled product movement. Particles are pushed away from the center by the horizontally existing process air. One single nozzle in the center of the air distribution plate. The spray liquid is nebulized 360° horizontally. The droplets are following the particle flow. Traditional top spray applications are possible in combination with the special Ventilus features. The controlled product movement created by the air distribution plate Orbiter® and the in-process filter Sepajet® The single filters are cleaned with process air that is taken from the inlet air handling system. Compressed air consumption is reduced tremendously, and the cleaning efficiency is increased by flushing the pores of the filter from inside out. Automatic cleaning in place and validation of the washing result is possible.
