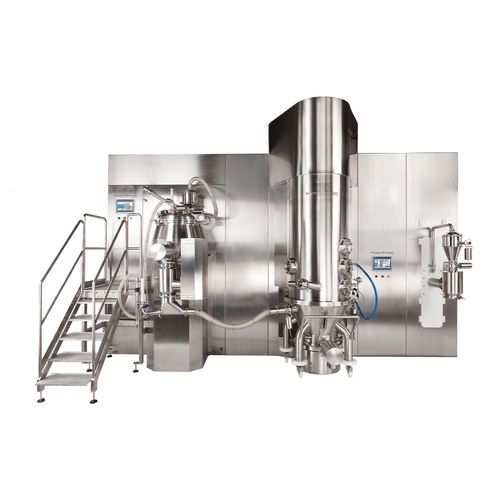

Granulator for the pharmaceutical industry IGT

wet

Wet granulation process integrated into a single frame. Maximum versatility for process development The granulation line integrates all options for the pharmaceutical wet granulation process into a single frame and control panel: Mixing and granulation: high shear mixer granulator Drying, granulation, coating: fluidised bed dryer Calibration: conical and cylindrical calibrators Maximum versatility for process development Standard equipment with capacities ranging from 25 L to 1,400 L, other dimensions on request In-wall design for integration into clean room Manufactured in AISI 316L Mirror polished Ra < 0.5 Non-contact top cover without supports in the container Bottom impeller and side chopper to ensure intensive mixing in a very short time period Control of end point by time or by torque PLC + HMI for the control in manual and automatic mode, with recipe editing Automatic impeller lift during cleaning phase Working platform adapted to the client’s space (Wurster system) Fluidised bed dryer Main features From 30 L to 1.540 L,other dimensions on request In-wall design concept Built in AISI 316L, mirror polished Ra < 0.5 PCL + HMI in manual and automatic mode, with recipe editing 12 bar pressure shock resistance Innojet offers a wide range of services: installation “turnkey concept” at the client facilities, start-up, qualification, training and production support. The high shear mixer granulator is designed to optimise the wet granulation process. Used to turn a heterogeneous fine powder mixture in a short time and with repeatability into a uniform granulation with increased particle size and higher density, offering good flow and compaction properties.
