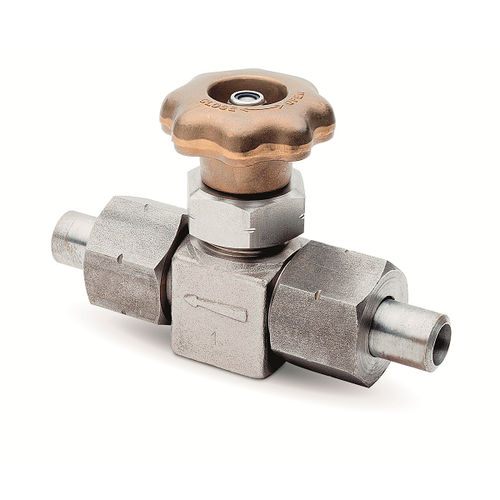

Medical gas valve HP12

stainless steel

HP12 is a stainless steel multi-turn valve intended and approved for a high pressure acetylene gas installation. The valve can be used in following cases : on high pressure installations, manifolds for filling, discharging and venting HP systems, acetylene supply line, cylinder bundle, acetylene switchover units or as a general shut-off valve. HP12 valve is a seat disk valve equipped or not with a weldable adaptor on the inlet and outlet, and easily removable from pipework. Key advantages High flow through 12mm orifice Seat disk valve equiped with a weldable adaptor on the inlet and on the outlet, easily removable from pipework No friction between the seat valve and the valve Opening allowing a progresive flow of the gas Acetone and DMF resistant In compliance with the 2010/35/EU directive Has to be protect downstream with a flashback arrestor Specifications Inlet pressure max. 25 bar Flow coefficient 2,13 Orifice diameter Ø 12 Mm Leak rate 10-3 mbar.l/s Temperature range -20 to +70 °c Body material AISI 304 - Stainless steel Seat seal PA - Polyamid O-ring EPDM Weight 1,8 kg Inlet connection M33x2 Outlet connection M33x2
