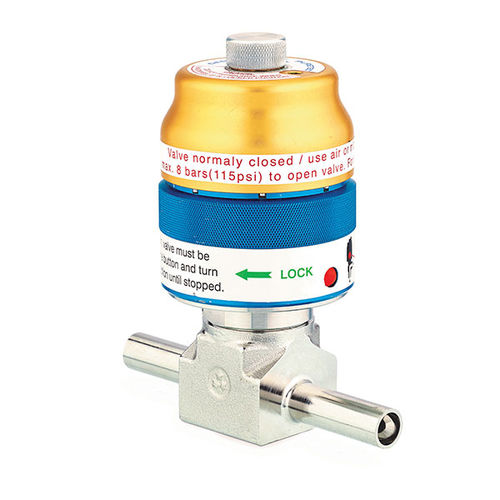

Medical valve D689S

medical gasoxygen cylinderstainless steel

Combined soft and metal seat design with low permeation rate. Welded diaphragms provide a high leak tightness integrity Tied diaphragm design which minimizes gas wetted volume to allow easy purging. No moving components in the gas wetted area to not generate particles. Secondary sealing to prevent the gas coming in contact with actuator in the case of diaphragm failure. Threaded weep hole for leak test and pipe away connection (M4 thread), allows the connection to a leak detector. Front and back panel valve fixation Specifications Connections Welded connection according to standards Working pressure 200 bar Nominal flow rate CV = 0.5 Temperature range -40 to +65 °c Leak rate 1.10-8 m bar L/s Seat orifice size - 6 Mm Marking π0029 (according to TPED),Valve part number, manufacturing date, nominal pressure and flow direction, Connections - seat material, 3 stars
