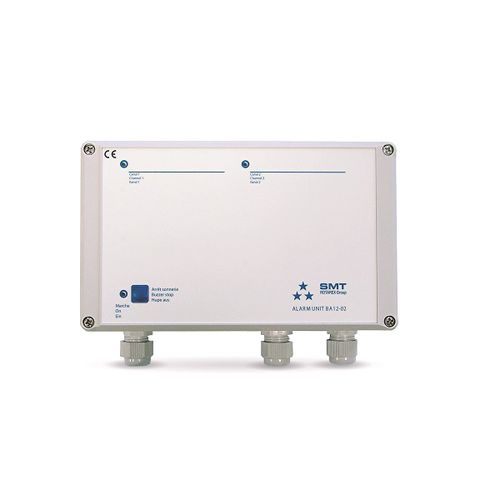

Anesthetic gas alert system BA12

Alarm boxes detect a drop in pressure when the gas bottle is empty. Messages are displayed visually by LEDs and audibly by a buzzer. The plastic case with IP65 seal can be mounted on a wall and a panel. Optional EX protection (installation outside Ex-area). Key advantages Visual and acoustic signal when the cylinder is empty Devices available in three versions: for 2, 6 and 10 inputs Available in 230 V or 115 Volt versions Optional EX protection Integrated LED allow visual information Integrated Buzzer for acoustic alarm Specifications voltage 230 VAC/50 Hz 115 VAC/60 Hz power < 3VA Type 1 Potential free relay contact Rating 8A/230 VAC w/ resistive load Function Group Message Type 2 For external horn or lamp Rating 8A/230 VAC w/ resistive load Connection 2-storey cage clamps Terminal voltage 10VDC/10mA (unstabilized) 0.9 material ABS Protection IP 65 Dimension (w x h x d) 200 x 120 x 75 (mm) Temperature range 0 to 55 °c
