Thoraco-lumbar osteosynthesis unit Quantum®

posterioradult

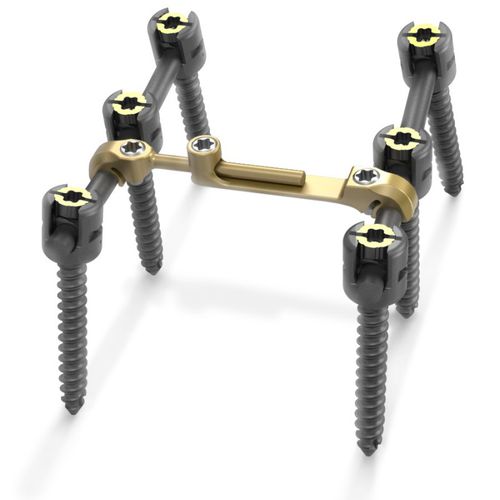

Quantum® Spinal Fixation System The Quantum® Spinal Fixation System allows a rigid construct to be created in the thoracolumbar spine using pedicle screws, locking caps, rods, connectors and Streamline® TL Crosslinks. The unique locking mechanism is designed to create a precise compression force that provides consistent locking of the screw to the rod. Pedicle Screws Polyaxial and fixed screws available in multiple diameters and lengths Ti-6Al-4V with Nitinol subcomponent Locking Caps Non-threaded design minimizes potential of cross-threading “Saddle” feature distributes load on rod over greater area than typical set screws Fit all screw sizes Detent features on locking cap and screw provide added security to lock the cap Etched lines on cap and screw head provide visual verification of locked position Ti-6Al-4V with Nitinol subcomponent Rods Ø5.5mm pre-bent and straight rods available in multiple lengths Ti-6Al-4V and cobalt chrome rods available Hooks T1-L5 only Multiple hook options available Ti-6Al-4V Rod Connectors Parallel and end-to-end options Offset connectors available in multiple lengths Ti-6Al-4V Streamline TL Crosslinks Variable and fixed options available in multiple lengths to accommodate a wide range of spinal anatomies Ti-6Al-4V Sterilization This system is supplied nonsterile. For sterilization instructions, please reference the package insert.
