Highly precise eye tonometer for measuring intraocular pressure. Its reliability and durability makes this quality measuring instrument indispensable in every ophthalmologist’s practice and eye clinic.
An eye pressure test uses an instrument called a tonometer to measure the pressure inside your eye.

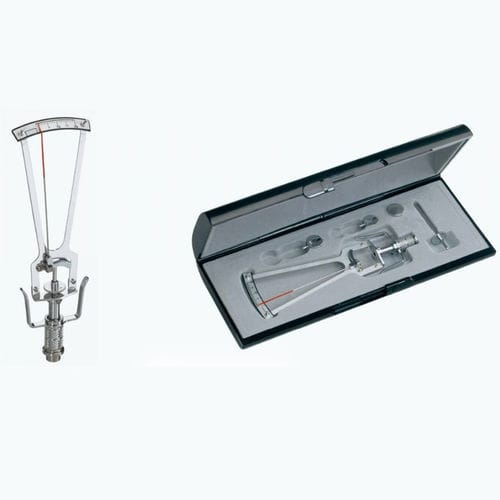

Riester’s schiötz Tonometer is used to measure intraocular pressure. Eye doctors primarily use the tonometry in cases of suspected increased intraocular pressure or as a preventive examination for early detection of glaucoma.
Schiötz Tonometer details
Scale
Needle
Lever arm
Plunger
Barrel
Holder
Foot plate
Test block
Weights
Features and benefits
High quality agate bearing for an extremely long service life
Precision measurement on a scale of 0 to 20 subdivisions and 0 to -1 sub-divisions
Easy to read scale with red pointer
Complete in a black deluxe case with velvet-look inserts
Supplied with three weights (5.5 g, 7.5 g, 10 g) and a conversion table
Product details
Dimensions Height: 130 mm, Width: 45 mm, Weight: 24.4 g
Scale
0 to 20 graduation marks
0 to -1 graduation mark
One graduation mark corresponds to a stroke of 0.05 mm
Operating temperature 10 °C to 40 °C
Relative humidity 30% up to 70 % relative humidity, non-condensing
Storage temperature -20 °C to 70 °C
Storage relative humidity up to 85 % relative humidity, non-condensing
Air pressure 700 hPa - 1060 hPa
