Pharmaceutical product production line LTAG

automatic

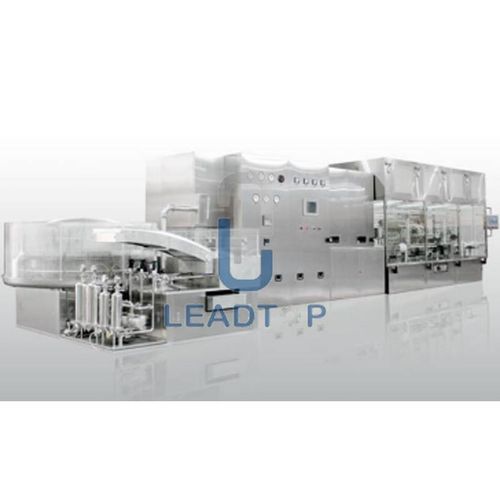

The LTAG model ampoule washing-drying-filling-sealing production line is composed of the LTXP series vertical ultrasonic bottle washing machine, LTGM tunnel hot air circulation sterilizing oven and LTAG series vertical filling-sealing machine, whist the three component machines can also be used independently. Suitable for production of ampoules of 1-20ml, it can complete more than 20 pharmaceutical procedures such as spray and water filling, ultrasonic rough washing, bottle exterior wall washing, bottle interior wall continuous twice circulation water washing, primary blowing, primary fresh water washing, continuous twice blowing, bottle exterior wall blowing, preheating, drying, sterilizing, pyrogen removing, cooling, front gas charging, filling, rear gas charging, preheating, sealing, and etc. The production line is a new-type line which is researched and developed by us after years of efforts through integrating our proprietary patented technologies on the basis of digesting and absorbing advanced domestic and overseas technologies. The whole line adopts PLC main control, frequency converter and touch screen control technology whilst the production process is stable and reliable. The touch screen can display running dynamics of each single machine, water pressure, air pressure, wind pressure and temperature air each control point. The display of each on-off status and faults, fault self-diagnosis, fault analysis and eliminating methods realizes automatic control during the whole production. The production line is provided with the three-machine automatically control and balancing device to ensure the balanced and reliable production.
