Width: 53 cm
Lenght: 110 cm
Height: 130 cm
Weight: 60 kg
Technical Specifications:
- 7.0” touch screen monitor resistive;
- PC iMX6 DL 1GB, Micro SD 8GB, OS Linux;
- USB output;
- Opto isolated RS232 output;
- Opto isolated USB output (virtual RS232);
- Resistance: 0-700 Watt constant;
- Electronic variation of effort;
- Computer-controlled eddy current brake with torque measurement speed independent or
dependent by RPM;
- Braking load cell feedback system;
- Electric power supply 65W 100-240Vac 50-60 Hz / 24Vdc 2.7A;
- Chain traction;
- Speed: 3-130 RPM;
- Led colored scale of pedaling (RPM) across to the display in the shell console;
- Effort increasing: 1 Watt;
- Easy accessibility for user;
- Saddle height continuous adjustment for patients between 120 cm and 210 cm tall;
- Max user’s weight 180 kgs;
- Certificate of Con

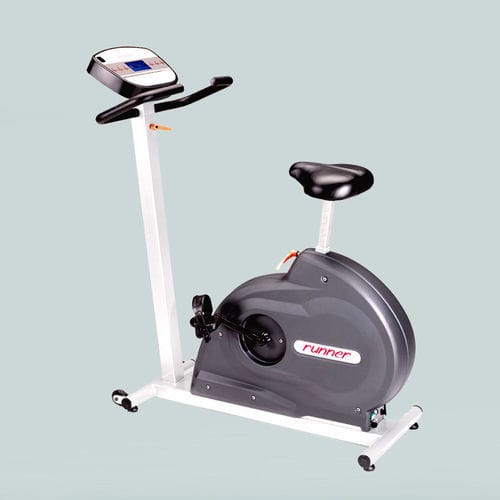

CYCLE-ERGOMETER
Width:53cm
Lenght:110cm
Height:130cm
Weight:60kg
Technical Spécifications:
7.0" touch screen monitor résistive;
-PC iMX6 DL 1GB, Micro SD 8GB, OS Linux; USB output;
Opto isolated RS232 output;
Qpto isolated USB output (Virtual RS232); Résistance: 0-700 Watt constant;
Electronic variation of effort;
Eddy current brake;
Electric power supply 65W 100-240Vac 50-60 Hz / 24Vcc 2.7A;
Chain traction;
-Speed: 3-130 RPM;
Led colored scale of pedaling (RPM) across to the display in the shell console;
Effort increasing: 1 Watt;
Easy accessibility for user;
Saddle height continuous adjustment for patients between 120 cm and 210 cm tall;
Max user's weight 180 kgs;
Certificate of Conformity to EEC93/42 (Medical Device).
