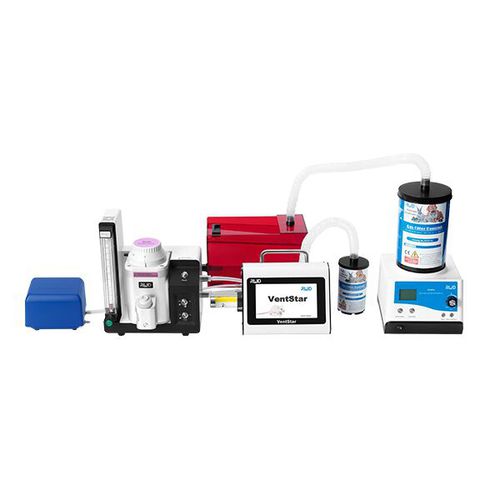

Animal research veterinary anesthesia workstation

for rodentsfor micetabletop

This program is the combination of anesthesia machine and ventilator. While keeping the animal under anesthesia, it provides a certain volume (tidal volume) of oxygen and respiratory rate to support the normal breathing of animals. It can meet the requirements of long surgeries or surgeries on animals suffering from certain diseases (such as cardiovascular and cerebrovascular diseases, hypertension, cerebral infarction, thrombosis), and suitable for mice, rats, rabbits, cats and other animals within 5kg. Feature 1.High accuracy vaporizer (Each one has an independent test report). 2.Dual channels: Independent switches for chamber and mask channels. 3.Integrated design, no need to install vaporizer and 4.Low stress induction chamber, supporting active recycling. 5.High efficiency gas evacuation system preventing the researchers from exposure to anesthesia gas. 6.Special anesthesia mask for stereotaxic, which does not hinder experimental operation. Air Pump: Voltage：110-120v Frequency：60Hz Air Flow：18L/min AMP(A)：0.36 WATT(W)：20 Maximum Size(mm)：163*128*111 Vaporizer: Flowmeter specifications:0-4L/min Concentration range:Isoflurane:0-5%；Sevoflurane:0-8% Concentration output accuracy:±0.1（0-1％）；±0.15（＞1％） Capacity:≥120ml Operating temperature range:10-35℃
