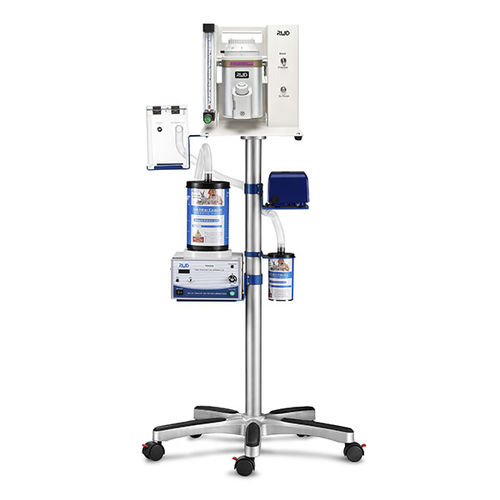

Animal research veterinary anesthesia workstation R530

for ratstrolley-mounted

Specially designed for safe, simple, and controllable inhalation of gas anesthesia for rats, mice, rabbits, and hamsters within 7kg, It is portable and upgraded from the R500 compact Mouse and Rat Anesthesia Machine, which allows easy and convenient transportation of the whole unit. These are separate: air pump, gas evacuation apparatus, induction chamber. This model is not available. Features Integration of the draw, Save space, easy to move Accurate oxygen flow meter, Flow control range: 0-1L/min and 0-4L/min available High accuracy vaporizer (Each one has an independent test report) Gas toggle switch, button switching gas path, more than 100,000 times of service life. Quick oxygenation switch to remove residual anesthetic mixture in the tube or anesthesia induction chamber. Oxygen or air can be chosen as gas supply. Technical Specification Applicable to rats, mice, hamsters, guinea pigs, rabbits, cats and other animals within 7kg 1 to 4 L/min O2 flowmeter 10L/min O2 flush Three kinds of filling type vaporizer is optional-Pour Fill , Easy Fill and Key Fill Anesthesia concentration range: 0-5%, or 0-8%, accuracy low than 10% Work temperature:10-35℃
