Rodent laboratory stereotactic frame 6881 series

for catsfor animal researchbench-top

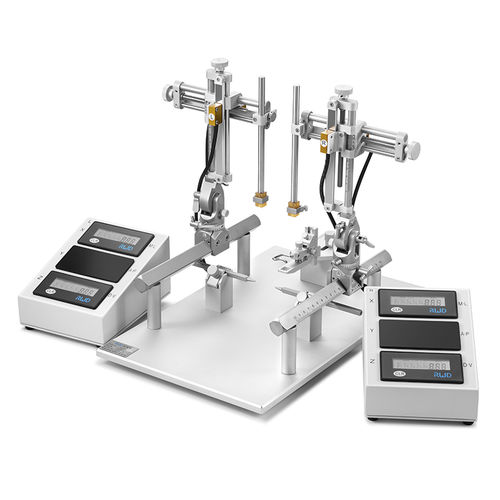

Large animal stereotaxic instrument is suitable for cats, dogs, monkeys, pigs, etc. It contains a two-dimensional manipulator (X, Z axis). The accuracy of the non-digital model is 100 μm, and the accuracy of the digital model is 10 μm. Two kinds of adaptors are optional, the 68081 monkey adaptor is generally suitable for large animals of 10-30kg, and the 68041 is generally suitable for large animals below 10kg. Technical Parameters 1. Adaptors are available for dogs, monkeys, pigs, and other large animals. 2. Y-axis slide design, longer moving range: ± 100mm, 1mm resolution. Optional AP Micro-driver, the resolution of Y-axis promoted to 50μm. 3. Working distance in X-axis and Z-axis dimension is 80 mm with precise alignment to 0.1mm resolution. 4. Holds up to six manipulator arms for more independent operations. 5. Unique jaw plate design better stabilizes the heads of large animals of varying weights 6. Vertical direction: 180° rotation and lock at any angles. 7. Horizontal direction: 360° rotation and lock at any angles. 8. Dual-lead screws ensure stable, accurate and smooth manipulation. 9.Accuracy and flexibility can be maintained at variable temperatures. 10. Extended base plate (400mm x 255mm) is applicable for a variety of animal sizes. 11. Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation. 12. Vertical lock and fixing knob are separated to ensure accurate function at any angle. 13. Laser engraved scales enable comfortable reading. 14. Ear bar locked plate pressing instead of clamping ensures more stability. 15. Syringe pump, micro camera and drill can be attached to instruments.
