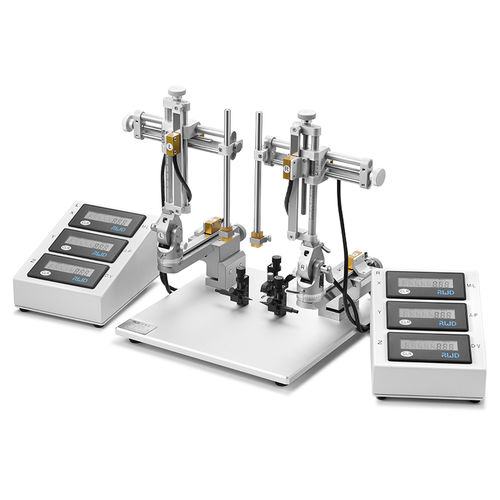

Mice stereotaxic frame 68805

for animal researchbench-topdigital

The portable stereotaxic instrument cancels the traditional U-shaped frame, and the operation space is larger. This type is specially designed for mouse. The height of the nose bar and ear bars can be adjusted from 0-20mm, which is convenient for adjusting the level of the skull. The accuracy of non-digital models is 100 μm, and the accuracy of digital models is 10 μm. Key Benefits Specific fixed base ( 255mm x 255mm) for mice, fixed more quickly. Replace the U-frame, enlarge the operating space, more economical and reliable. Unique UP indicator to prevent incorrect operation.. Double-lead screw design, more stable and accurate operation. The ear bar is made of polyoxymethylene resin, 4 different fixed points with 1mm resolution for scales. Technical Specifications 1. Base plate size : 255mm x 255mm. 2. Ear bars made of polyoxymethlene resin, unique and light. 3. Height adjustment range for palate clip: 20mm (0mm~+20mm). 4. Height adjustment range for ear bars: 20mm(0~+20mm). 5. Ear bars with laser engraved scales (1mm resolution). 6. Working distance in 3 dimension is 80 mm with precise alignment to 0.1mm resolution. 7. Vertical direction: 180° rotation and lock at any angles. 8. Horizontal direction: 360° rotation and lock at any angles. 9. Dual-lead screws ensure stable, accurate and smooth manipulation. 10. Accuracy and flexibility can be maintained at variable temperatures. 11. Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation. 12. Vertical lock and fixing knob are separated to ensure accurate function at any angle. 13. Replace the U-frame, enlarge the operating space, more economical and reliable
