HEPA filter AB, MAB, DAB, LPD

airlaboratoryfor healthcare facilities

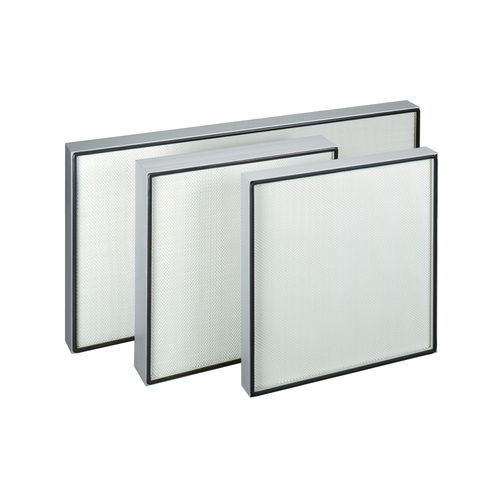

The DELTA range of HEPA H14 and ULPA U15 mini-pleat filters for unidirectional flows are suitable for use in all systems that require high air purity levels: Laminar flow fume hoods, isolators, down cross and LAF; In terminal filters (DIF-P/A, DIF-K/S, Pharmasafe) to maintain clean zones for pharmaceutical production, production machinery and weighing systems; In filtration ceilings (DIF-O.T.) in operating theatres and ancillary rooms in the hospital sector; in air intake grilles (DEC-A, DEC-S) for contamination-controlled environments; in production tunnels in the electronics industry. Constructed in an ISO7 environment; Compliant with EN 1822-4, individually tested in ISO5 environment (scanning test OPC/Photometer) and labelled; Individually packaged in controlled ISO5 environment; Extruded aluminium frame, depths 68, 78, 90 and 115mm; Water-repellent, fire-retardant micro-fibreglass filter media; Micro-stretched aluminium protection grid painted in white epoxy paint; Continuous thermoplastic spacers; Bicomponent polyurethane sealant; One-piece seal. Upon request: LV version with equaliser on air outlet side to ensure uniform air flow +/- 2.5%; LPD version with reduced pressure drops by -20%; RLS reverse liquid seal; ATEX II 2 GD T6 version. Efficiency class U16, U17.
