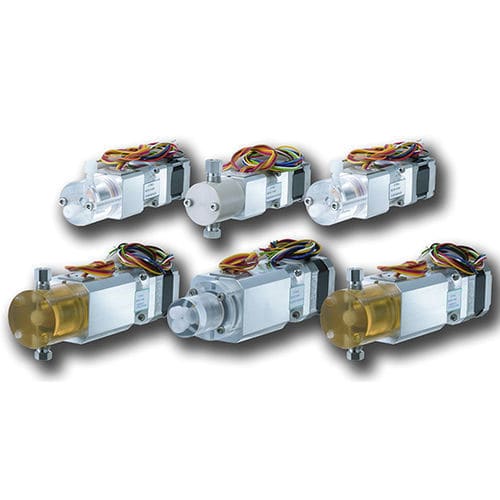

Medical micropump TS Series

dispensingdosinglaboratory

TS series provides more than ten basic models covering 27 uL through 3 mL/stroke. The request for modification is welcome to flexibly cope with specific applications requiring (1) air bubble removal, (2) specific volume dispensing per pulse, (3) increased dispensing speed, (4) easier tubing replacement, etc. Advantages for system builders are: 1. High reproducibility (CV 0.2114 with 10 units in test) will minimizes deviation among production lots of systems. 2. The standard specification includes plunger seal back washing space. Especially ideal for application with saline fluids. 3. Precise machining of inner parts minimizes tear and wear problems with mating parts during system running. 4. System down frequency can be reduced with plunger seal having expected service life of 2,000,000 cycles. 5. Footprint as small as 28 x 28 mm available. Plunger-type dispensing pump with stepping motor. Micro step available. Resolution: 0.0127 to 1.0052 uL/pulse (in full step). Reproducibility of CV 0.2114 % with 10 pieces of pumps. (Test data). Application: Blood analyzer, clinicall analyzer • 27 uL through 3 mL/stroke of plunger driven with stepping motor. • CV 0.2114 with 10 units in test • Minimum dimensions of 28 (W) x 28 (H) x 120.5 (D) mm • Ports for washing plunger-back seal For Continuos and Metering flows The remarkable reproducibility of CV 0.1235 with 44.12 uL stroke volume model Footprint of pump modules has come down to 28 x 28 mm The basic ten models can be flexibly modified for a specific application. Application: Analyzers, auto samplers, liquid handling systems, etc.
