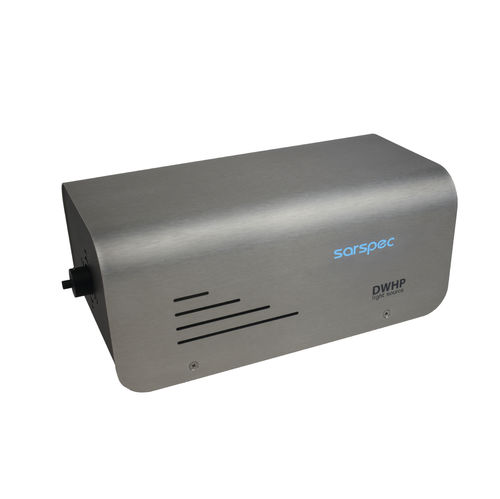

Spectrometry light source LS-DWHP

tungsten halogendeuterium halogencompact

Great Performance UV-Vis-NIR Spectral Range Shutter Controller and Lamp Selector Built-in Filter Slot and Slide Holder Remote Control with SPEC Hub DWHP is a powerful and stable light source that combines the continuous spectrum of two high-power deuterium and tungsten lamps in a single optical fiber SMA connector, which features an adjustable focusing lens assembly. The combined spectrum of these two lamps produces a highly efficient output between 180 and 2500 nm and provides the perfect amount of light for absorbance, transmittance, and reflectance measurements. The integrated shutter on DWHP light source simplifies the operation for dark measurements and limits the exposure to UV light without the need to turn off the light source while the lamp selector makes it easy to choose between an individual or combined deuterium and tungsten lamp operation. Complementary to its high-power lamps, DWHP light source has a built-in filter slot that accommodates a filter holder for narrowing the wavelength range or reducing the light intensity. A powerful light source The combination of a 30-watt deuterium lamp with a 7-watt tungsten lamp in a shine-through configuration provides DWHP light source with high intensity over the entire UV-Vis-NIR range. For maximum light efficiency, this light source also incorporates an adjustable 12.7 mm collimating lens. Select only the lamp you need DWHP light source has an integrated lamp selector that allows you to choose between an individual and combined deuterium and tungsten lamp operation, according to your spectral region of interest.
