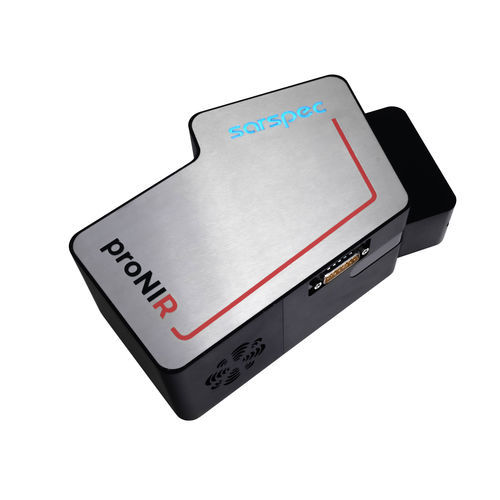

Fiber optic spectrometer ProNIR series

near-infraredfor researchfor the pharmaceutical industry

The ProNIR series is the perfect solution for those who are looking for a powerful and easy-to-use spectrometer for absorbance, transmittance, and reflectance measurements across the NIR region. The improved optical bench design combined with the highly-photosensitive thermoelectrically cooled InGaAs detector offer a high level of sensitivity, great stability, and a low dark current performance, even in low-light-level conditions. Other features, such as power status indicator, user-interchangeable slits and optical filters, 18-bit AD converter, and triggering functions provide the best flexibility to any spectroscopic setup where ProNIR is set. Cold Detector, Hot Performance! The ProNIR series detector is equipped with a thermoelectric cooler capable of decreasing the temperature of the InGaAs photodiode array, as low as -20 ºC. Easy integration in your setup The SMA fiber optic connector allows the simple attachment of ProNIR to a wide range of spectroscopic setups without complex optical alignments. This flexibility is complemented by the triggering function, which includes triggers in/out and delays. The best photosensitivity over a selected range ProNIR is available in three detection ranges (850-1450 nm, 950-1700 nm, and 900-2500 nm). In addition to the InGaAs detection range, users can also customize the operational wavelength and optical resolution through the available gratings. A wider range for more information The ProNIR series can be easily combined with any of our UV-Vis-NIR Series (FLEX, FLEX+, SENSE, or X-RES) to obtain a wide range absorption, transmission, and reflectance spectrum.
