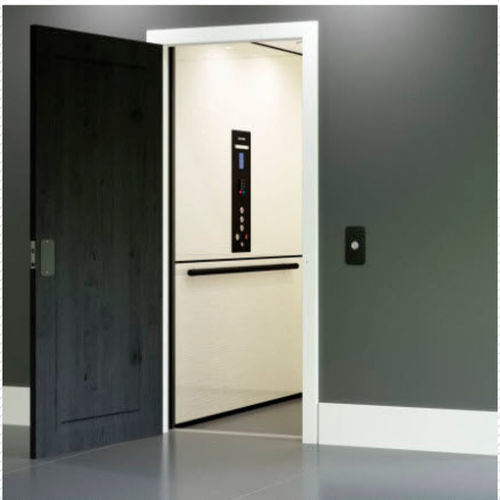

People with reduced mobility elevator Zénith

home

• Our top-of-the-line traditional home elevator; based on our commercial-grade Orion MRL elevator, the robust Zenith offers the finest in ride quality with whisper-quiet operation • Unique geared traction counterweight design requires only a small space in a closet* for components, so a machine room is not needed • Multiple cab sizes available with capacity up to 1400 lb, code permitting • Services up to 6 stops over a maximum travel distance of 50' (up to 60' in some regions) • Openings can be configured for same-side, straight-through or 90º entry and exit, depending on the layout of your home Features Machine roomless: Less space required for the installation. Counterweight traction with slack cable safety device: Geared motor 1:1 sheave, three 3/8" diameter traction cables (ropes), rope wedge sockets. Hide-away gate: Innovated gate system tucks away for maximum entryway and interior space. Other standard features: 8lb/ft T-rail system, anti-creep device, cartop stop switch, automatic cab on/off interior lighting, digital display in car operating panel, surface-mount telephone, oxford white ceiling with 4 LED pot lights, melamine interior in choice of colors or MDF panels. Standard finishes: Flat melamine or unfinished MDF (see cab configurator), clear or bronze anodized aluminum rectangular cab operating panel and hall call stations, double plywood floor, oxford white ceiling. Safety features: Battery operated (UPS) emergency lowering and lighting, powered emergency lowering, motorized braking, lockable control panel, elevator door interlocks, emergency stop switch, in-use indicator light on hall stations and slack cable and safety device.
