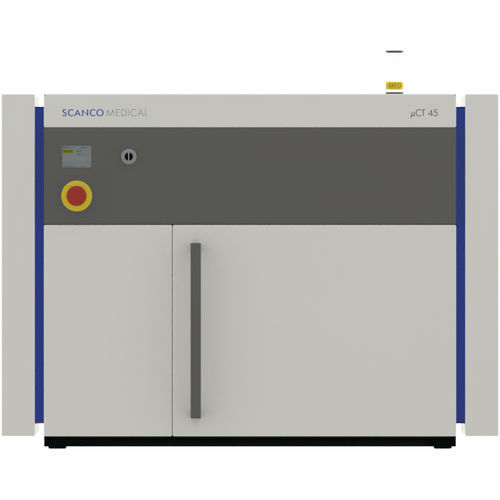

Micro X-ray CT preclinical imaging system µCT 45

µCT 45 combines a very compact desktop design with a very high resolution. The optional sample changer accommodates up to 20 sample holders, and a filter changer offering 3 different materials can be fitted. Variable filter and X-ray power settings greatly increase the range of materials that can be scanned. Type - Desktop cone-beam microCT Fully shielded No external shielding required X-ray source - Sealed Air-cooled Maintenance-free 5 µm spot size (4/8 W) 20 - 90 kVp (45, 55, 70, 90 kVp preset and calibrated) Detector - 3400 x 1200 elements, 20 µm pitch Resolution - ‹ 5 µm 10% MTF 1.25 µm - 100 µm nominal isotropic (pixel size) Image matrix - 512 x 512 to 8192 x 8192 pixels Max. scan size - 50 x 120 mm (ØxL) Max. specimen size - 50 x 120 mm (ØxL) Electrical - 100 - 230 V / 50 - 60 Hz max. 400 W Dimensions - 78 x 97 x 57 cm (HxWxD) Weight - 250 kg Sample changer - up to 20 sample holders (depending on max. sample size) Filter changer - 3 positions Compression/Tension Device - Cooling/Heating Stage
