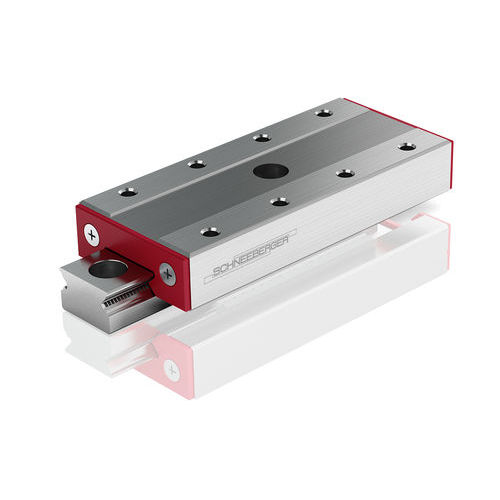

Compact slide table MS Series

linear array

The materials used make them suitable for a variety of applications. This also includes at high temperatures or in an ultra-high vacuum High process reliability thanks to cage control. The gear rack and pinion are integrated directly into the carriage and guideway. The cage and pinion are made from high-quality plastic. MINISLIDE Type MS 4 and MS 5 Highest results in the smallest envelope The gothic arch profile of the MINISLIDE MS tracks permits loads that are more than ten times higher than a traditional 90° V-profile. The last word in productivity MINISLIDE embodies the newest generation of miniature slides for extremely demanding applications. They are highly robust and reliable in every application due to their smooth performance, precision and long service lifetime. MSQ – highest process stability due to elimination of cage creeping The models MSQ 7, MSQ 9, MSQ 12 and MSQ 15 are equipped with a highly developed and robust cage assist system. This eliminates cage-creep. The toothing system of the cage assist system is incorporated directly into the carriage and rail. Cage and pinion are made of high-quality plastic. This compact and robust design, with a minimum number of integral components, ensures high reliability under all running condition. Benefits of the integrated cage assist system No need for re-centering of the cage in applications with vertical installation, high accelerations or with uneven load distribution Neither the tolerances of the surrounding construction nor temperature differences lead to cage creep Reduced cycle times due to higher speed and acceleration Adjustment-free operation and therefore, more productive time High operational life
