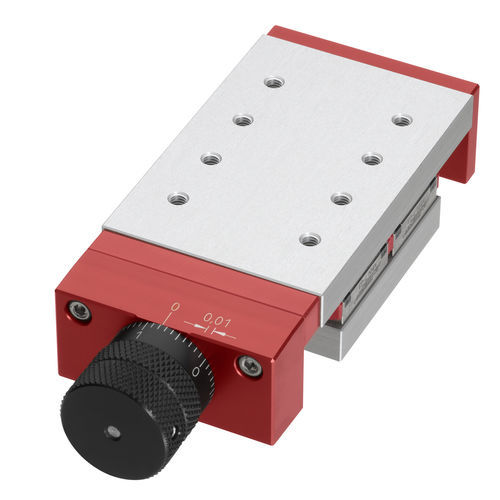

Linear array slide table NFM

positioning

Modular design with various table component lengths The table can be manually positioned with a threaded spindle and moved in any direction The modularly designed type NFM positioning table has various table component lengths for strokes of 25 to 150 mm. The positioning is performed manually using the threaded spindle - a preloaded zero-backlash plastic nut and a scale ring with a reading resolution of 0.01 mm. The table components are made of natural anodized aluminum; MINIRAIL guideways and threaded spindle are made of stainless materials. Type NFM can be used in all movement directions and installation orientations. Special lengths, strokes or drilling templates are available on request.
