Outlet 5707

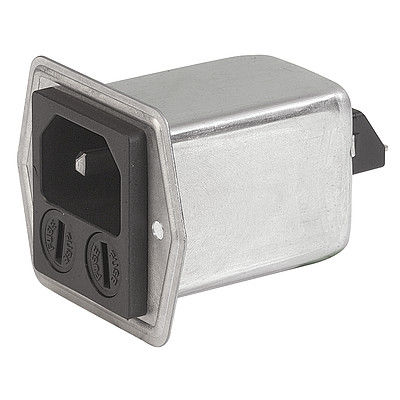

IEC Appliance Inlet C14 or C18 with Filter, Protection Degree IP65 into the Appliance, Fuseholder 1- or 2-pole, Front or Rear Mounting Description Panel mount: Screw-on version from front or rear side, Screws with sealing are included 4 Functions: Appliance Inlet protection class I or II, Line filter in standard and medical version, Fuseholder for fuse-links 5 x 20 mm, IP65 protection into the appliance For front side mounting versions a sealing kit IP54 for the power supply connection is available as an accessory: 4700.0021 Option suffix ".22" offers IP54 for the power input in combination with V-Lock cordsets Quick connect terminals 6.3 x 0.8 mm Unique Selling Proposition Sealed power entry module Strong in Design and Safety IP 65 protection to the appliance IP 54 protection to the cord connection Characteristics Extreme robust design All single elements are already wired Screw type fuse carrier, slotted With EMC-shield Especially for applications in rough environments (see technical data) For applications according IEC/UL 62368-1 we recommend variants with bleed resistor Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP) Other versions on request Class X1- and Y1-capacitors for enhanced withstand voltage Medical Version (M80) Additional factory-mounted sealing (IP54) of power input Version with current rating 3 A
