Outlet 5120

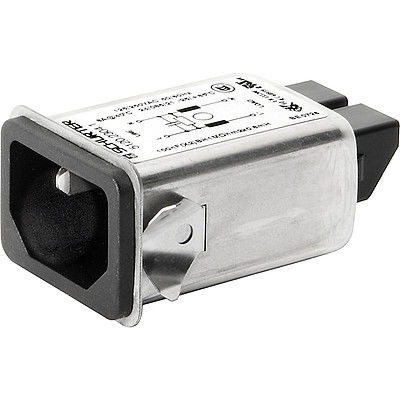

IEC Appliance Inlet C14 or C18 with Filter, ECO design, Front- or Rear Side Mounting Description Panel mount: Screw-on version from front or rear side, snap-in version from front side, PCB Version from rear side 2 Functions: Appliance Inlet protection class I or II, Line filter in standard and medical version Solder/quick connect/wire (stranded) PCB Earth Terminal Unique Selling Proposition V-Lock cord retaining Metal flange for optimal shielding Compact design Variants for protection class I and II Characteristics Compact high performance filter Optimal shielding due to completely closed filter case, unpotted Suitable for assembly in metal plated plastic housings Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP) For applications according IEC/UL 62368-1 we recommend variants with bleed resistor Other versions on request Snap-in for panel thickness >2mm to 3mm flexible wire with various lenghts Class X1- and Y1-capacitors for enhanced withstand voltage Medical Version (M80)
