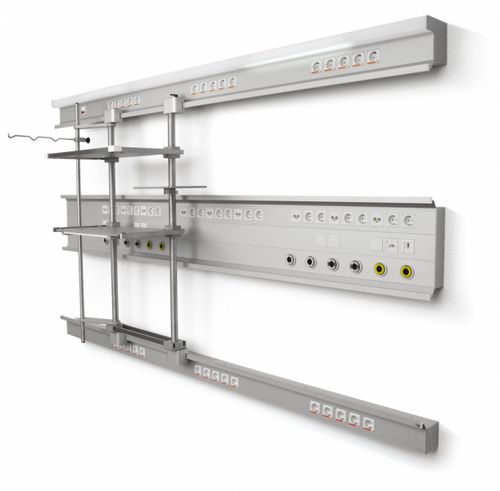

Wall-mounted bed head unit Q 100 intensive

horizontalmodularfor intensive care service

In intensive medicine, the life of patients can depend on a very few machines. State-of-the-art medical devices, connected to an absolutely reliable, functional and easy-to-operate supply system represent the basic requirements for maintaining life-sustaining measures. The Q100 "intensive" was developed to enable the easy handling of all personnel-serviced devices requiring an energy supply. This facilitates all the treatment, care and monitoring which the patient requires. All the necessary electric sockets and communications connections, medical gas outlets and general and reading lights are integrated in a highly-flexible modular system. The wall system "Q100 intensive" consists of right-angled extruded aluminium supply profiles in two depths, matching equipment rail profiles and lights with translucent extruded acrylic-satin light covers. The Q100 intensive is available in various designs and can be fitted with medical connection devices, consoles and accessories. The 1-bar or 2-bar cart on the positive-fitting adjustable equipment rail profile (25 x 10 mm) provide the highest-possible level of flexibility. The use of such a moveable cart is possible as the shallow nature of the central channel leaves plenty of space for the medical gas connection plugs or accessories mounted to the central equipment rails. safe is safe The highest requirements made of design and function – our S120 and S121 lights represent the optimal complement.
