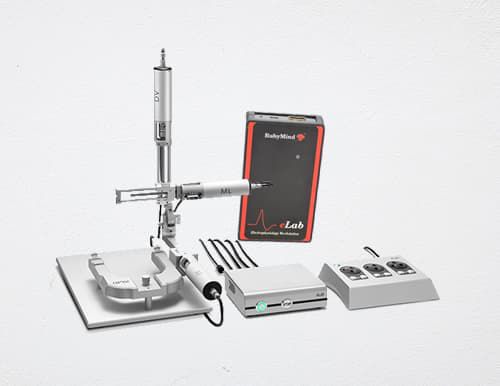

Rodent laboratory stereotactic frame 71000

for animal researchbench-top

Automated Stereotaxic Instrument function description: accuracy The operating arm moves up and down, left and right, and back and forth within a range of 80mm. With a high-precision screw, running an accuracy of 1μm. One-key calibration function When using for a long time, the computer display position parameters and locator reading deviation, the user can calibrate by one-key. Positioner movement control function 4 control modes: a. PC terminal software interface arrow control; b. PC end automatically moves to the target coordinate after inputting the target coordinate position; c. The micro-operation platform can precisely control the positioner movement, micro-operation Every 18 ° rotation of the knob performs a displacement of 1 μm; d, keyboard keys control the movement of the locator. The locator movement speed adjustment function a. The movement speed can be adjusted by inputting the movement speed at the corresponding positions of the three axes on the PC software interface. Among them, AP axis and ML axis can be selected from 5 movement speeds: 2.00 mm/s、00 mm/s、0.50 mm/s、0.20 mm/s 、0.10 mm/s, 8 kinds of moving speed of DV axis can be selected 2.00 mm/s 、1.00 mm/s、0.50 mm/s、0.20 mm/s 、0.10 mm/s、0.05 mm/s、0.01 mm/s、0.005 mm/s、0.001 mm/s; b. At the micro-operation end, the movement speed of the three axes can be uniformly adjusted by a certain step through the buttons. Coordinate finder with an integrated map The brain map version is the second version of the mouse and the sixth version of the rat. The user can select the brain map version. After selecting the version, the brain map version information is displayed.
