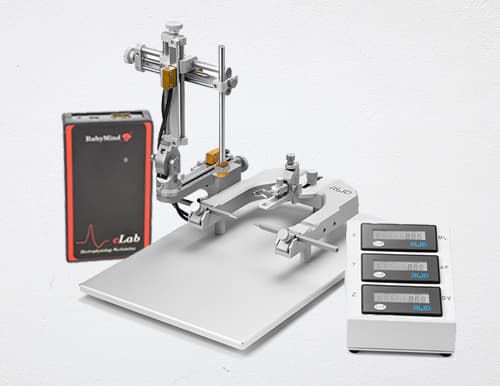

Digital Stereotaxic Instruments function description:
In Digital Stereotaxic Instruments the ‘U’-Frame design provides stability and adaptability. Dual-lead screws ensure stable, accurate and smooth manipulation
Technical Specifications
1. Adaptors are available for rats, mice, rabbits, guinea pigs, etc.
2. LCD digital display, real-time shows displacement distance, accuracy 10μm
3. One key to reset, no secondary readings and calculations
4. Powered by AA battery, no electronic interference
5. The working distance in each dimension is 80 mm with precise alignment to 0.1mm resolution.
6. Vertical direction: 180° rotation and lock at any angles.
7. Horizontal direction: 360° rotation and lock at any angles.
8. Dual-lead screws ensure stable, accurate, and smooth manipulation.
9. Accuracy and flexibility can be maintained at variable temperatures.
10. An extended base plate (400mm x 255mm) is applicable to a variety of animal sizes.
11. A unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.
12. The vertical lock and fixing knob are separated to ensure accurate function at any angle.
13. To ensure a precise designed lateral rotation operating space, the distance between the knob and the U-shaped frame is 28mm.
14. Laser engraved scales enable comfortable reading.
