Rodent laboratory stereotactic frame

for animal researchbench-top2-tower

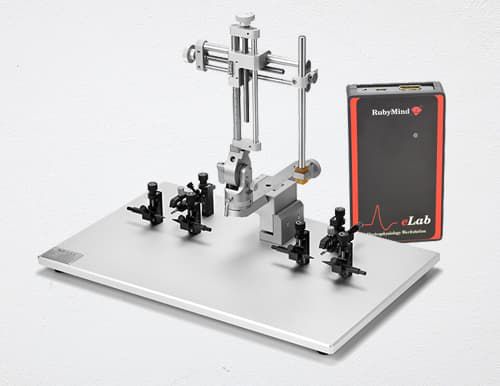

Portable Stereotaxic Instrument for 2 Mice function description: Portable Stereotaxic Instrument for 2 Mice Specially designed for experiments with two mice at the same time. Replace the U-frame, enlarge the operating space. Technical Specifications 1. Base plate size: 400mm x 255mm. 2. Specially designed for experiments with two mice at the same time. 3. Ear bars made of polyoxymethylene resin, unique and light. 4. Height adjustment range for palate clip: 20mm (0mm~+20mm). 5. Height adjustment range for ear bars: 20mm(0~+20mm). 6. Ear bars with laser engraved scales (1mm resolution). 7. Working distance is 3 dimensions is 80 mm with precise alignment to 0.1mm resolution. 8. Vertical direction: 180° rotation and lock at any angles. 9. Horizontal direction: 360° rotation and lock at any angles. 10. Dual-lead screws ensure stable, accurate, and smooth manipulation. 11. Accuracy and flexibility can be maintained at variable temperatures. 12. A unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.
