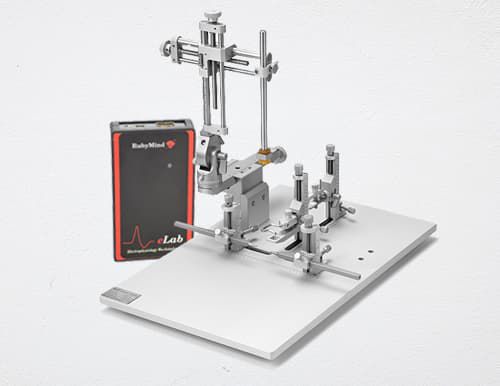

Mice laboratory stereotactic frame

for ratsfor animal research2-tower

Portable Rat & Mouse Stereotaxic Instruments function description: Portable Rat & Mouse Stereotaxic Instruments same base plate can be fitted with rat and mouse adaptors and corresponding ear bars. The Stereotaxic Instruments includes a 100 micron 3-axes Technical Specifications 1. Base plate size: 400mm x 255mm. 2. Distance between ear bar and base plate: 35.5mm. 3. Ear bar slots with vernier of 0.1mm resolution. 4. Scale range of Ear bars: 35mm with 1mm resolution. 5. Dorsal/Ventral adjustment range for the adaptor: 30mm (+10mm~-20mm) with 0.1mm resolution. 6. Working distance is 3 dimensions is 80 mm with precise alignment to 0.1mm resolution. 7. Vertical direction: 180° rotation and lock at any angles. 8. Horizontal direction: 360° rotation and lock at any angles. 9. Dual-lead screws ensure stable, accurate, and smooth manipulation. 10. Accuracy and flexibility can be maintained at variable temperatures. 11. A unique anti-clockwise UP mark engraved in the knob prevents incorrect operation. 12. The vertical lock and fixing knob are separated to ensure accurate function at any angle. 13. Replace the U-frame, enlarge the operating space, more economical and reliable 14. Laser engraved scales enable comfortable reading. 15. Ear bar locked plate pressing instead of clamping ensures more stability. 16. A syringe pump, micro camera, and drill can be attached to instruments.
