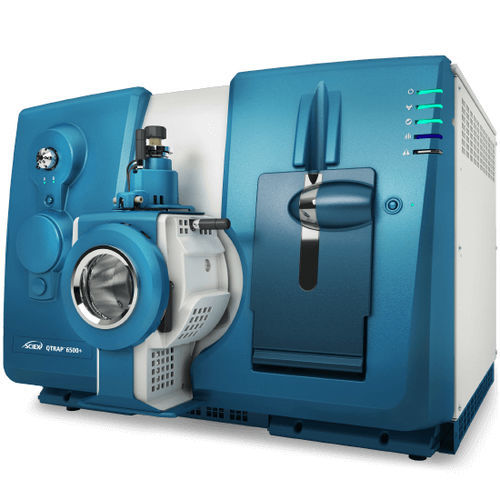

Liquid chromatography system QTRAP® 6500+

for researchLC/MS/MSquadripolar ion trap

This system is the fastest and most sensitive QTRAP. It provides the best LOQs to enable the detection and quantification of the widest scope of chemical compounds in the most challenging matrices. Improved polarity switching and MRM3 speeds allow faster chromatography and better throughput. The built in QTRAP functionality enables quantitative MRMs and qualitative QTRAP scans in the same injection to maximize throughput. The system is ideal for laboratories performing demanding applications requiring ultimate sensitivity for ultra-low level quantitation of both small and large molecules. Key features Mass range Triple quadrupole: 5 – 2,000 Da. linear ion trap: 50 - 2,000 Da Flexible ionization options Options include Electrospray (ESI) ionization and heated nebulizer ionization probes. Selective, robust and powerful ion separation Optional SelexION® Detector type IonDrive™ High Energy Detector Polarity switching 5 msec in MRM and Scheduled MRM™ modes Three areas of enhancements for the 6500+ Series The production of more ions with the newly designed IonDrive™ Turbo V source is just one of the updates you will see with the QTRAP 6500+. Also added is the ability to capture and transmit more ions with the unique IonDrive™ QJet Ion Guide and greater detection with the new IonDrive™ High Energy Detector+ IonDrive Turbo V Source The new design of the legendary Turbo V™ source increases ion production by using enhanced gas flow dynamics and optimized heater configuration to improve reliability, reproducibility, and robustness.
