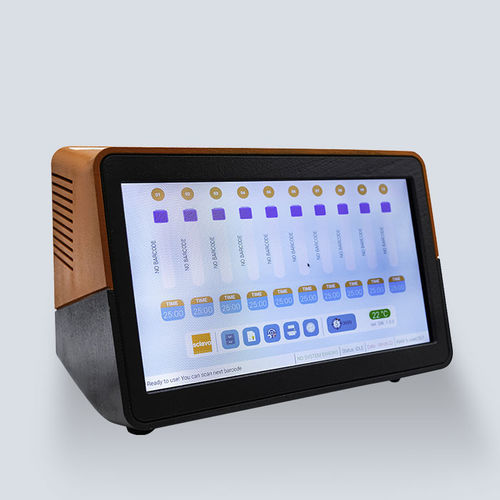

Automatic ESR analyzer Sclavo-SED 10

for clinical diagnosticUSB

ESR performed on the same Cell Blood Count (CBC) sample. No need of dedicated Citrate tubes. Innovative calculation algorithm supported by neural network. Continuous loading of samples. Results in only 25 minutes. 10 inches Touch Screen user interface. No production of liquid waste. Safe and environmentally friendly. Power supply 110-240Vac, 50-60Hz, 12Vdc@5A Dimensions 184 x 256 x 181 mm (W x D x H) Weight 2,7 Kg Technical characteristics - Display Capacitive color touch screen 10” Optical system 10 pairs of solid-state optoelectronics elements Interfaces 2 type A USB ports for printer and bar-code reader connection 1 Ethernet port for LIS connection Internal Fan Internal fan to dissipate heating in the sample rack area Operating temperature 15 – 30°C Humidity From 20 to 80% without condensation Storage conditions 0 – 50°C Advantages ESR performed on the same Cell Blood Count (CBC) sample. No need of dedicated Citrate tubes. Innovative calculation algorithm supported by neural network. Continuous loading of samples. Results in only 25 minutes. 10 inches Touch Screen user interface. No production of liquid waste. Safe and environmentally friendly.
