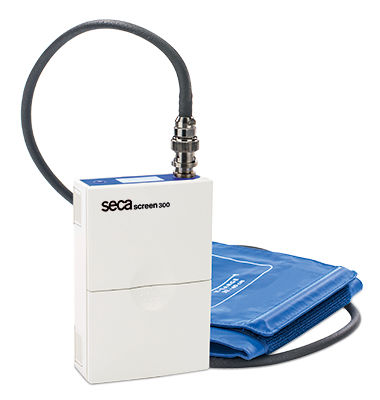

ABPM patient monitor screen 300

portableambulatoryclinical

Precise measurement even during atrial fibrillation Skin-friendly, easy-to-disinfect, synthetic cuff available in sizes S to XXL (latex-free) High-quality double tube system for significant reduction of motion artefacts Efficient energy management enables recordings up to 72 hours Enhanced patient comfort due to low operating noise and blood pressure adapted inflation control Fast wireless data transfer from the recorder to the PC Night mode for a restful sleep and low-noise pump valve unit for patient-friendly measurement Due to our validation, we can guarantee exact and reliable measurement results and artefact suppression is significantly improved, too. Automatic day-nightrecognition, faster inflating and deflating times as well as the low-noise operation make the recorder very comfortable for the patient. Scope of Delivery Belt 127mm Bluetooth adapter Carrying bag Cuff (standard size) seca screen software excluded (see seca 4900054) Technical Data Display LED light indicators for ECG quality and charge status Product width 70 mm Product height 42 mm Product depth 12 mm ECG measurement range +/- 685,7 mV ECG Channels 3 Minimum detection threshold 5.51 μV radio frequency band - ISM 2.4 GHz Radio transmission power 10 MW Power supply Lithium polymer battery ECG amplifier 3 dB bandwidth 0 Hz – 105 Hz Sampling frequency 533 Hz Resolution 18 b
