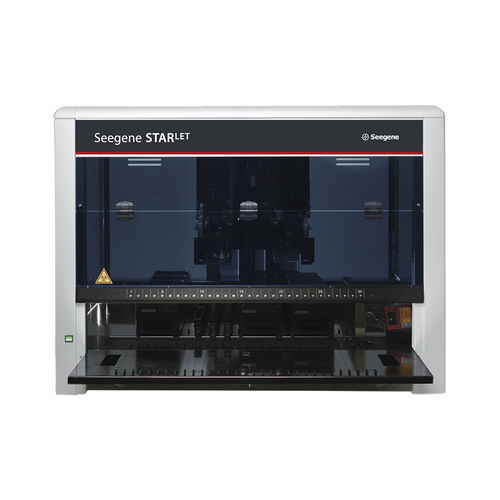

Clinical diagnostic nucleic acid extractor STARlet

Seegene STARlet IVD is an easy-to-use liquid handling workstation from primary sample tube to nucleic acid (NA) extraction and PCR setup. It provides convenient process of your lab works by minimizing hands-on time and maximizing assay reliability Flexible solution for extraction or PCR setup selectively One step process from extraction to PCR setup Extraction-only operation > PCR setup-dedicated operation Can be used with other NA extraction instruments > PCR setup-dedicated operation A single set of reagent for extraction of bacterial, viral, genomic, parasitic, fungal DNA and/or RNA from various types of specimens PCR setup up to 4 assays together with in-house PCR assays customized in your laboratory SPECIFICATION Power input - 115-230V, 50-60 Hz Power consumption - Maximum 600 W Dimensions - 1124 (W)x795 (D)x903 (H) mm Weight - 140 Kg Sample capacity - 1-94 samples TAT - 155 min for whole process Pipetting channel - 8 channels Dispensing precision (when using 300㎕ tip) - 10㎕ : 2%, 50㎕ : 0.75%, 200㎕ : 0.75 Dispensing precision (when using 1000㎕ tip) - 10㎕ : 3.5%, 100㎕ : 0.75%, 1000㎕ : 0.75% Positional accuracy - 0.1 mm on X-Y-Z
