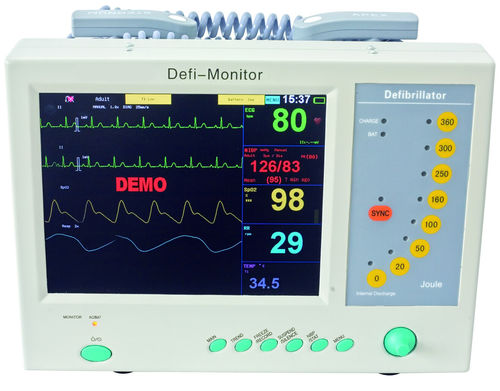

Manual external defibrillator PT-9000B

with ECG monitor

Features: Physical characteristics: Main unit: Desktop Dimensions: L410xW360xH260 Weight: 12kg Specifications: 1. DEFIBRILLATOR ● Defibrillator type: Manual, Synchronized, Asynchronized, ● Energy accuracy: ∠+1% ● Energy selection: 0, 20, 50, 100, 160, 250, 300, 360 joules(nominal at a resistance of 50) ● Charging time: Maximum 10 seconds to 360 Joules ● Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatricpaddles integrated) 2. Powerrequirements ● AC Power supply: 100V~240V,50Hz/60 Hz ● Vehicle Voltage (Option): DC 12V 3. Internal Battery Backup ● Battery type: Rechargeable lead-acid battery (12V 2.0Ah X2) ● Charging time: Time-Minimum of 4 hours for full charging ● Battery charging: During AC Power Supply operation of the device. ● Charging /Low Battery Indication :Red LED ● Battery Capacity:100% of the battery will provide 120-min ofmonitoring; and 35 discharges at 360 joules. 4. Display ● LCD Dimensions: 10.4 inch ● Type: High resolution true-color graphic LCD 5. ECG ● ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1～V6 ● S-T segment analysis: -2.0～2.0mv ● Arrhythmia analysis: yes ● Protection: With stand 4000vAc/50Hz voltage in isolation and workagainst electrosurgical knife and defibrillation 6. Respiration ● Measurement method: Thoracic impedance 7. NIBP ● Working mode: Manual/Automatic/stat ● Method: Automaticoscillation ● Cuff type: standard Adult; optional Pediatric/Neonatal 8. Temperature ● Measurement range 20~45℃ ● Resolution 0.1℃
