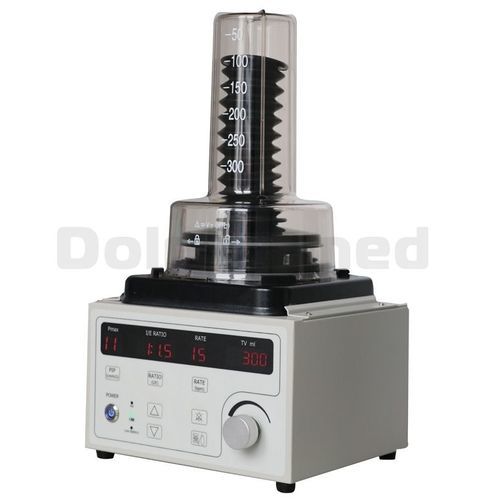

Anesthesia ventilator DAV-60vet

veterinaryelectronicpneumatic

Specially user for big animal and small animal anesthesia ventilator,could widely apply in vet hospital,animal R&D institute,university laboratory,animal clinic，animal zoo,etc. 1,Compact and salve the space. 2,Light and easy to move,save animal hospital cost. 3,With breathing mode IPPV,achieve the breathing automatically, assure the animal more comfortable. 4,With big animal bellow and small animal bellow,specially for animal use 5,the gas source pipeline take the high precious gas source,no leakage forever. 6,LCD digital display the important parameter. 7,Set parameter at a key interface,very easy and simple to operate. 8,Build in battery could continue one more hours in case of power failure 9,Matching with different brand veterinary anesthesia machine Specification： Display:LCD digital display Animal Bellow： Big animal：300-2000ML（optional）） Small animal：0-300ML Monitoring： Tidal volume,breathing rate,I:E ratio,Peak airway pressure, Breathing rate:4~60bpm I:E ration:1:1~1:4 adjustable Upper airway pressure:2~6kpa Lower airway pressure:0.6~2kpa Alarm:Battery low,Power failure,Airway pressure high/low Alarm Silence PIP scope：5-60 Transportation and Storage: The transportation or storage environment must not exceed below limits: Environment Temperature: -10~+35°C Relative humidity limits: 20%~60% Atomosphere pressure: 700~1060hPa
