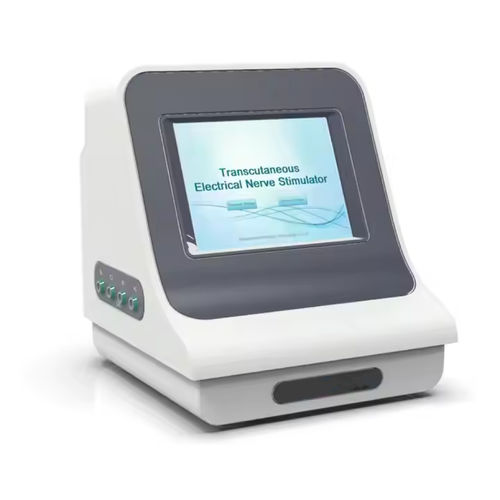

Electric stimulator RT1100

tabletopTENS1-channel

Transcutaneous electrical nerve stimulator (abbreviation: TENS) provides a reference oscillation signal by a microcomputer control chip, which is amplified by a power amplifier to drive the output of the output transformer. Through the output electrode line, through the skin electrode, the bidirectional asymmetric low-frequency pulse current is applied to the human body for auxiliary treatment. Model: RT1100 Screen: 10.4inch touch screen Channels: 8 channels Pulse Current: 0mA～100mA at 1KΩ, step size is 1, error ±30% Pulse Frequency: 1Hz～160Hz , step size is 1Hz, error ±10% Pulse Width: 20μs～500μs , step size is 10μs, error ±20% Pulse Charge: ≥2μC at 500Ω Pulse Energy: ≤300mJ at 500Ω Timing Function: 1min～99 Mins, Mode: Conventional Mode, Acupuncture Mode, Intensive Stimulation Mode, Low-rate Burst Mode, High-rate Burst Mode, Custom Mode Indications: For cervical pain, ligament injury, chronic pain, acute sprain, joint pain, phantom pain, limb stump pain, postoperative incision pain, migraine, neuralgia, dysmenorrhea, labor pain. Accessories: 8pcs Therapy Cable + 16pcs Electrode Pads + 4pcs Fuse + Maual + Therapy Cable After-sale Service: Online Technical Support
