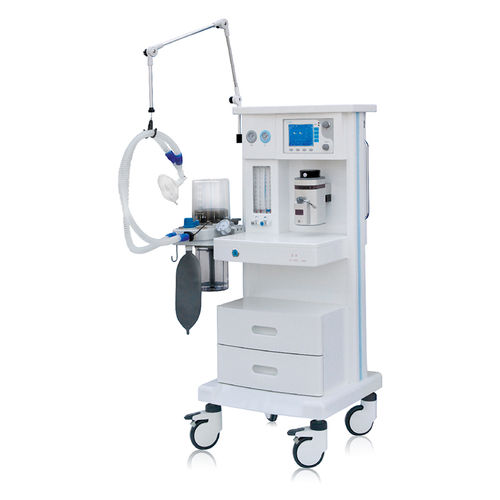

Trolley-mounted anesthesia workstation HF-560B3

with ventilatorwith respiratory monitoring

The Ventilator adopts microcomputer control with high-definition colored LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance; The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure,temperature and flow rate. High-definition four-tube flowmeter, desiged with stoppers for oxygen and nitrous oxide to control the output oxygen concentration Reliable pneumatic transmission system Economic and proper configuration of technologies, optional as required by the Customer Modularized design and upgrading. Upgrading is available as required by the Customer. Main Parameters Tidal volume - 20-16000ml Rate - 2-99bpm SIMV rate - 2-20bpm I:E - 4:1-1:8 Inspiratory tigger pressure - –10∼20 cmH2O PEEP - 2-20 cmH2O Pressure Range - 5-60 cmH2O SIGN - 1.5 times the inspiratory time (60-120 adjustable) Inspiratory platform - 0-50% Pressure control - 3-50 cmH2O Pressure slope - 1-10 gear
