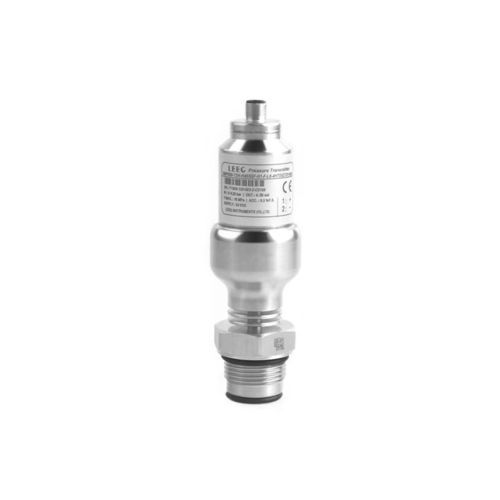

Pressure transmitter SMP858-TSH-H

Hygienic pressure transmitter, designed for food and pharmaceutical industry, is suitable for CIP/SIP cleaning and sterilization. Smart compact design, the wetted parts is made of high quality stainless steel 316L and integral welding, roughness≤0.4um, filling fluid with hygiene standard in line with FDA certification, variety of international standard process connections are available. Advantage • Double diaphragm overload protection structure can easily cope with high overload test. • Isolated air cavity design to prevent condensation and avoid pollution to the media. • Flush diaphragm up to +150°C per EHEDG. • Wetted parts with SUS316 stainless steel and O-ring from EPDM. • Filling fluid with hygiene standard in line with FDA certification. • Designed for food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilization. Features • Pressure type: gauge pressure • Measuring range: 10kPa-10MPa • Output signal: 4-20mA, 4-20mA+HART, 0.5-4.5VDC, Modbus-RTU/RS485, customer • Reference accuracy: ±0.2% URL, ±0.5% URL • Process connection: M20*1.5 male, G1/2 male, G1 male, G1-1/2 male... • Approvals: 3A, EHEDG, CE, RoHS, Ex-proof certificate Industry Application •Pharmacy, Food, Milk, Beverage, Juice…
