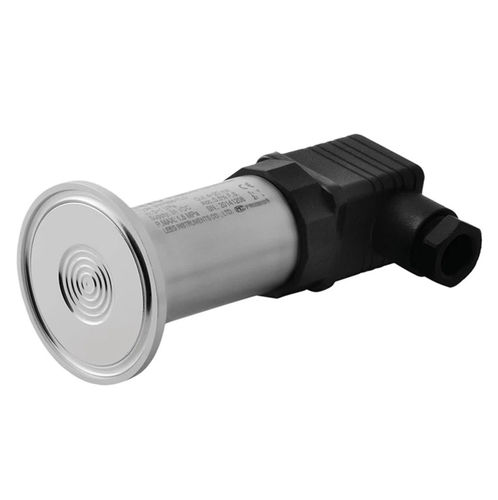

Pressure transmitter SMP858-TSD-S

Hygienic pressure transmitter, designed for food and pharmaceutical industry, is suitable for CIP/SIP cleaning and sterilization. Smart compact design, the wetted parts is made of high quality stainless steel 316L and integral welding, roughness≤0.4um, filling fluid with hygiene standard in line with FDA certification, variety of international standard process connections are available. Advantage • Originally patented fully-sealed, fully-isolated monosilicon pressure sensor. • Optional various process connection. • ASIC and SMT signal transmitting module. Friendly button parameters operation function, display measured data quickly. •Multiple temperature and linearity compensation to improve accuracy. Features • Pressure type: gauge pressure • Measuring range: 10kPa-3MPa • Output signal: 4-20mA, 4-20mA+HART • Reference accuracy: ±0.2% URL, ±0.5% URL • Process connection: Tri-Clamp 1-1/2", Tri-Clamp 2", DIN32676 DN32, ISO2852, DRD ... • Approvals: 3A, EHEDG, CE, RoHS, Ex-proof certificate Industry Application •Pharmacy, Food, Milk, Beverage, Juice…
